Ladder Frame Inspection
Inspect each part you manufacture – not only for a handful of critical features – but for ALL features that you need to have control over.
Ensure 100% part conformity, avoid warranty claims, and cut the cost of quality.
# of Inspected Features
Inspection Cycle Time

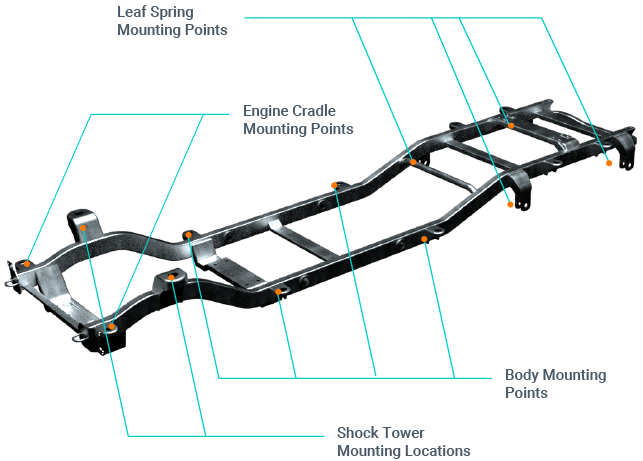

Example Inspection Points• Mounting points of the body
• Shock tower mounting locations
• Engine cradle mounting points
• Leaf spring mounting points
• Other functional mounting points
Stop Sampling. Take Full Control over Quality.
Achieve superior control over both part quality and process capability throughout the entire production lifecycle. By inspecting all features on each part, 100% x 100% in-line inspection unlocks brand new capabilities to lower parts-per-million and eliminate sorting costs.
Safe Quality Containment
Real-time Process Control
Ensure 100% Delivery Quality
Detect out-of-spec parts as soon as they are produced to safely contain them within your facility. Avoid OEM line shutdowns and expensive warranty claims. Build a reputation for 100% delivery quality.

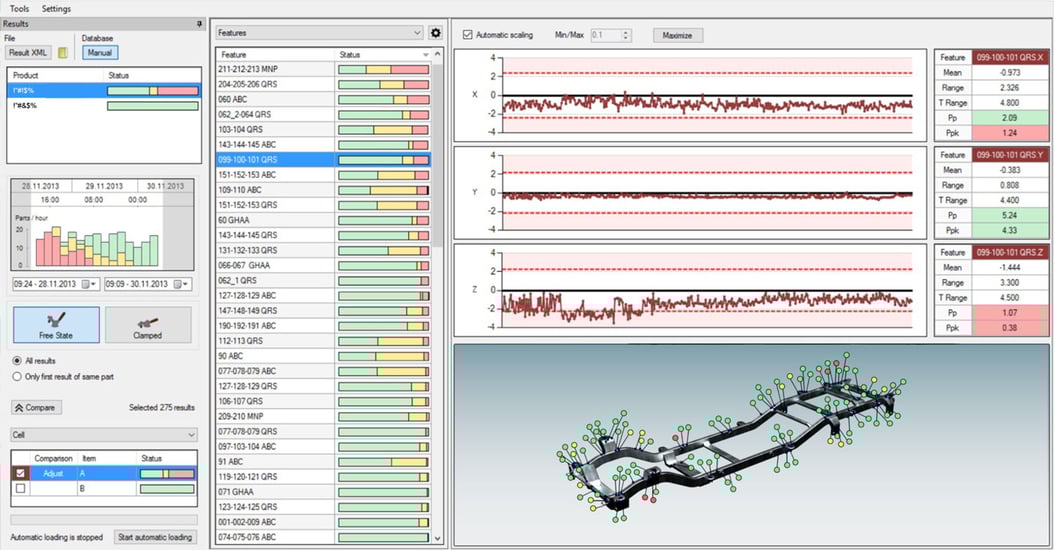

Monitor and Analyze Process Capability in Real-Time
Monitor your process performance for each feature, component, and production cell in real-time. Utilize deep-dive data to reveal complex variation patterns and trends. Prevent scrap and enable advanced closed-loop manufacturing processes.
Inspect and Sort Parts Fully Virtually
Inspect new inspection points even after the parts are shipped by using part digital twins instead of the physical parts. Eliminate manual sorting and conduct sorting activities fully virtually.
