Mapvision subframes

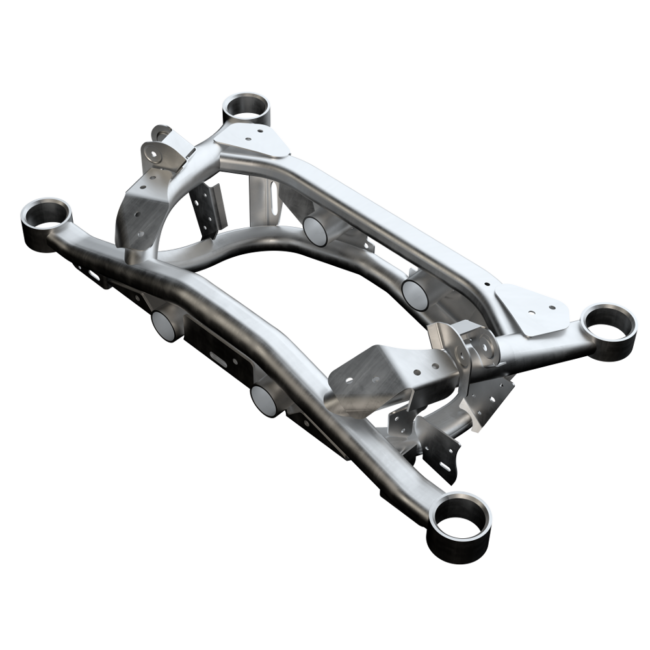

 Subframes



Details
Measurement

Measure every feature within 30 seconds – with no technical limit to the number of features you measure.

• Measure feature locations in 3D (x,y,z)

• Calculate all distances, angles, etc.

• Use 100% in-line data to accurately adjust your line

• Get usable data for improving geometric quality from day one of pre-production

Virtual Clamp - Exclusive to Mapvision

Collect both clamped and unclamped measurement results for a full picture of your subframes.

• No need for a mechanical clamp

• No hardware-related problems

• No maintenance of moving components

• Field-tested, ideal for subframes

Component Checks

Automated component presence checks

• Presence checks for weld nuts, weld studs, etc.

• No significant increase in inspection time
